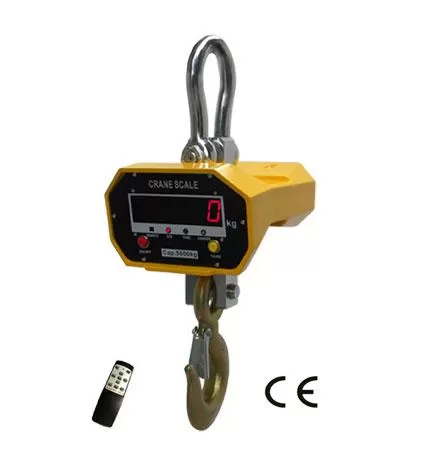

Digital Crane Scale
Model: OCS-SL
Dimensions and Specifications:
| MODEL | Cap.(kg) | Resolution(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | G.W.(kg) |
| OCS-SL-2 | 2000 | 1 | 95 | 260 | 35 | 195 | 130 | 430 | 12 |
| OCS-SL-3 | 3000 | 1 | 95 | 260 | 45 | 195 | 130 | 460 | 13 |
| OCS-SL-5 | 5000 | 2 | 125 | 325 | 55 | 235 | 158 | 525 | 19 |
| OCS-SL-10 | 10000 | 5 | 140 | 325 | 65 | 235 | 158 | 660 | 29 |
| OCS-SL-15 | 15000 | 5 | 175 | 345 | 70 | 235 | 160 | 805 | 57 |
| OCS-SL-20 | 20000 20000 | 10 | 175 | 345 | 85 | 235 | 160 | 870 | 63 |
Features：
◆Enclosure:
NEMA 12/IP54 powder coated Foundry Cast Aluminum
◆Multi-weighing units:
Kg, lb are selectable, kg are default unit.
- Multi-function operation:
Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
- User-friendly design:
Large red 5 digit LED display (digit height 30mm), Battery Operated with low battery indication, Automatic turn off , power-saving function.
Special design loadcell, threadless connection, more safety.
- Gravity regulation:
The acceleration of gravity can be regulated through remote controller according to different places value.
- Multi options:
RS-232-continuous or on demand data output, user-selectable.
Wireless big screen 3″, 5″, wireless indicator 180, 280, 380, 580 can match with the scale, user-selectable.
Main technical data：
| Accuracy Standard | According to OIML class III |
| Display | 30mm (1.2″) 5digits LED |
| Filtering | Low, Medium or High selectable |
| Units | Kilograms or Pounds selectable |
| Resulation | 2000 to 3000 divisions standard(up to 15,000 available) |
| Zero Range | 4% F.S. |
| Tare Range | 100% F.S. |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 400% F.S. |
| Battery Type | Fully sealed Lead-Acid battery, 6V/4.5Ah |
| Battery Life | ≥50 hours |
| Adapter | DC 9V/1000mA |
| Operating Temperature Range | – 20℃ ~ + 50℃ |
| Operating Humidity | ≤85% RH under 20℃ |
| Remote Controller Distance | Max. 15m |
| Battery of Remote Controller | 7# battery, 1.5Vⅹ2 |
| Acceleration of Gravity | Can be regulated, the default value is 9.793 |
Wireless printer indicator
Model: OCS-S5( crane scale OCS-S + 580 indicator) features:
Instrument size: 220X128X90mm, the latest design, compatible with the concept of portable, print and easy to operate. Shoulder bag style leather case,easy to carry, suitable for protected outdoor use.
Display: Wireless double-sided communication, 5 digits LCD display with backlight，digit height：25mm. Many functions on LCD display( battery power,TARE,ZERO,PEAK,Stable) .
Communications: Both RS232 serial port and USB port，solve most laptops without serial port problem. with the Everight company’s PC host computer software,not only display weigh value and stable information on the PC ,can also enter company’s name,complete storage ,print query and other functions .
Battery: High performance, 3500mAh SC type industrial Ni-H batteries, repeatedly charging times can reach 1000times, one time charge can work 50 hours under typical use.
Operatiing temperature: -20℃ to 60℃
Antenna: Intergral antenna
Update rate from scale: 4 times per second.
Printer: FUJITSU FTP-608 2″ high speed thermal printer
CPU: ARM-based 32-bit MCU,combines with high performance,real time capabilities, and low power, low voltage operation.
Function on keyboard: It can print data,time,Serial number, commodity number,net weight and total weight. Also can input 16 digits head information,It can store up to 2000 weighing records.It can be statistics by serial number or commodity number，also can statistics by data, statistical results can be printed with weighing number and total weight.
Radio Frequency: Standard 433MHz wireless module, up to 200m wireless distance，up to 36 channels available.（868MHz, 2.4Ghz wireless module optional）.
Crane Scale Applications
This industrial crane scale fits many heavy lifting industries:
- Steel plant & metal fabrication
- Port, container yard & logistics warehouse
- Scrap metal recycling yard
- Construction, mining & quarry
- Foundry, lumber mill & shipping loading inspection
Technical Specifications
- Model: OCS Series Digital Crane Scale
- Capacity: 0.5t,1t,2t,3t,5t,10t,15t,20t,30t,50 ton
- Display: Red LED / Backlight LCD
- Material: Cast aluminum housing, alloy steel hook
- Power: Rechargeable battery / AC adapter
- Communication: Wired / Optional wireless radio
- Certification: ISO, CE (custom available)
Why Choose Our Crane Scale?
We are professional manufacturer for crane scale and industrial weighing equipment. ✅ Factory direct price ✅ OEM & ODM support (logo, color, custom function) ✅ 18-month warranty ✅ Strict quality test before shipment ✅ Fast delivery & professional after-sales support
Get Quote for Crane Scale
Contact us to get latest price, catalog and technical drawing of our crane scale. Tell us your required capacity, display type and optional accessories, we provide complete weighing solution.
