Overview

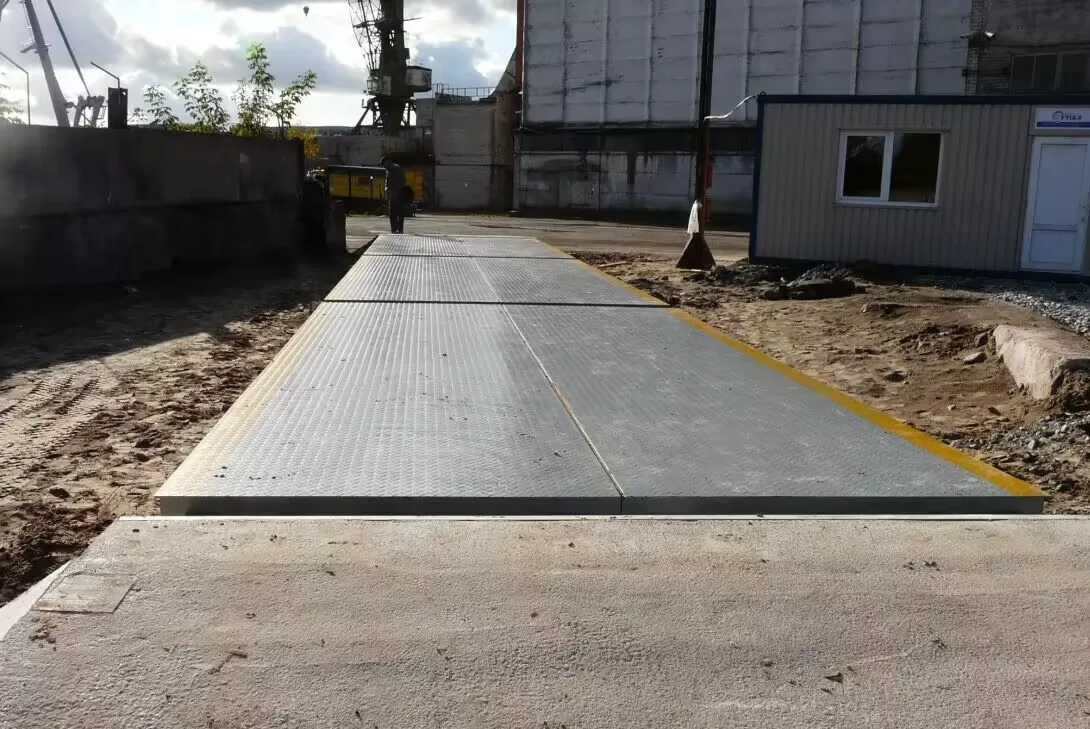

Pit type truck scale, also known as underground weighbridge, is installed below ground level. The weighing platform keeps flush with the road surface, saving site space and convenient for vehicle driving. It is widely used in mining plants, quarries, garbage treatment stations and aggregate yards.
Key Features
- Underground pit installation, platform flush with ground

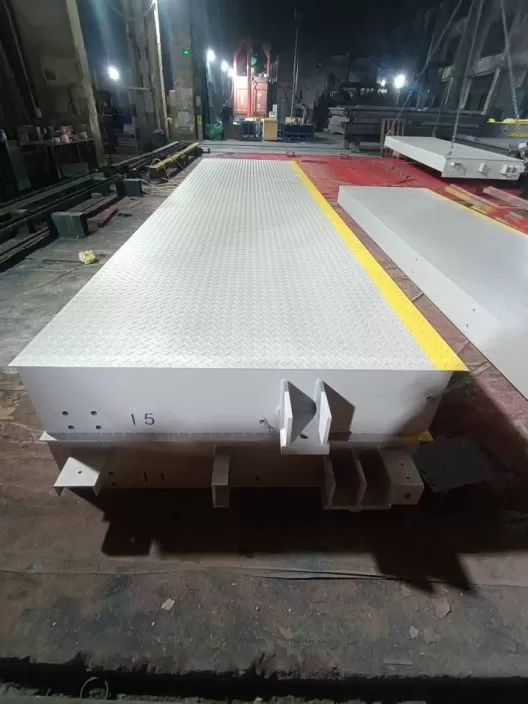

- Heavy-duty U-beam steel structure, strong load capacity
- OIML Class III high weighing accuracy

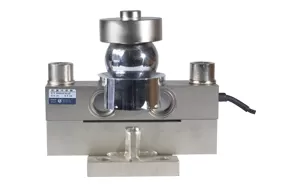

- Shear beam load cells, IP67 waterproof protection
- Stable digital weighing indicator
- Built-in drainage system for pit foundation
- Anti-corrosion coating for long service life
- Overload protection & stable data transmission
Technical Specifications
| Item | Parameter |
|---|---|
| Model | SCS-100T Pit Type Truck Scale |
| Max Capacity | 100 ton |
| Platform Size | 3m × 18m (Custom available) |
| Division | 10kg |
| Accuracy | OIML Class III |
| Load Cell | Shear beam load cell, IP67 |
| Installation | Pit / Underground type |
| Working Temperature | -30℃ ~ +70℃ |

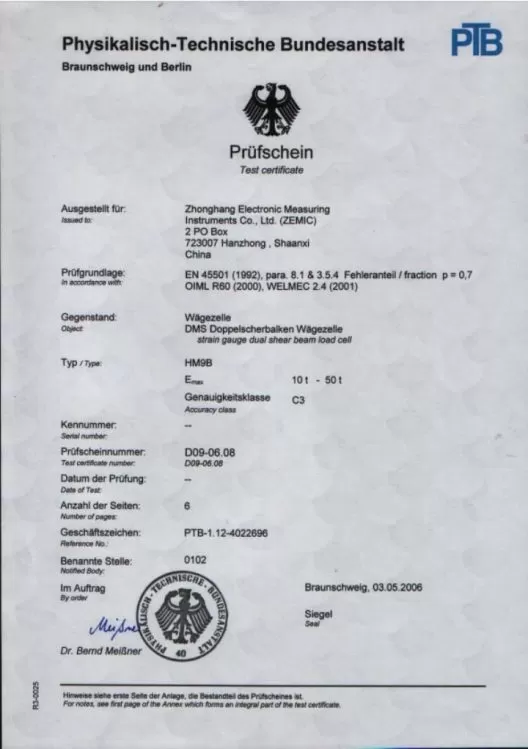

| Certification | OIML, CE, ISO9001 |
| Warranty | 2 years for whole scale, 5 years for load cells |
Applications
Pit type truck weighbridge is widely applied in mines, stone quarries, concrete batching plants, waste recycling stations, grain depots and logistics terminals.
Why Choose Our Pit Type Truck Scale
We are a professional truck scale manufacturer. Our pit type weighbridge adopts thickened steel plate and anti-rust treatment. We provide foundation drawing, installation guidance and after-sales support. Custom size & tonnage are available. Contact us to get the latest factory price.
FAQ

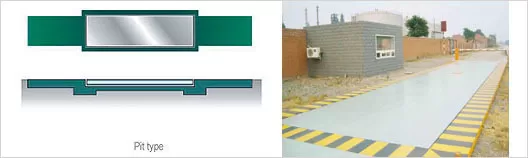

Q: What is pit type truck scale? A: Pit type truck scale is a weighbridge installed inside a concrete pit, the platform is level with the road, no ramp needed.
Q: Pit vs pitless truck scale, what is the difference? A: Pit type needs concrete pit construction, no ramp, save land space. Pitless truck scale is built on ground with ramps, no need for underground foundation.
Q: Can you customize pit type truck scale size? A: Yes, we support custom capacity and platform dimensions according to your site condition.
