Dynamometer Testing Equipment For Sale | Digital Tension Load Test Dynamometer

Category: Products, Wirelss Dynamometer

Our dynamometer testing equipment is designed for professional tension measurement and proof load testing of cranes, slings, wire ropes and lifting gear. Capacity ranges from 1 ton to 200 ton, wireless remote reading, peak hold function, heavy alloy steel shackles. Widely used for on-site dynamometer testing in port, mining, offshore and construction industries. Send your load testing requirement for custom quotation.

Product Details:

Digital Dynamometer Testing Equipment | Tension & Proof Load Testing Dynamometer

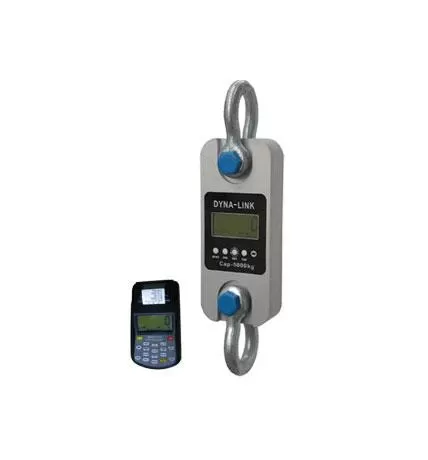

Wireless Dynamometer

Model: DL-W5

DIMENSIONS(Dimensions shown are nominal and subject to tolerances)

MODEL	CAP	Div	A(mm)	B(mm)	C(mm)	D(mm)	φ(mm)	H(mm)	Material
DL-W5-1	1t	0.5kg	245	112	37	190	43	335	Aluminum
DL-W5-2	2t	1kg	260	123	37	195	51	365	Aluminum
DL-W5-3	3t	1kg	260	123	37	195	51	365	Aluminum
DL-W5-5	5t	2kg	285	123	57	210	58	405	Aluminum
DL-W5-10	10t	5kg	320	120	57	230	92	535	Alloy Steel
DL-W5-20	20t	10kg	375	128	74	260	127	660	Alloy Steel
DL-W5-30	30	10kg	420	138	82	280	146	740	Alloy Steel
DL-W5-50	50t	20kg	465	150	104	305	184	930	Alloy Steel
DL-W5-100	100t	50kg	570	190	132	366	229	1230	Alloy Steel
DL-W5-200	200t	100kg	720	265	183	440	280	1362	Alloy Steel

WEIGHTS

Model	DL-W5-1	DL-W5-2	DLW5-3	DL-W5-5	DL-W5-10
Unit Weight(kg)	1.6	2.1	2.1	2.7	10.4
Weight with shackles(kg)	3.1	4.6	4.6	6.3	24.8
Model	DL-W5-20	DL-W5-30	DL-W5-50	DL-W5-100	DL-W5-200
Unit Weight(kg)	17.8	25	39	81	210
Weight with shackles(kg)	48.6	73	128	321	776

Profile:

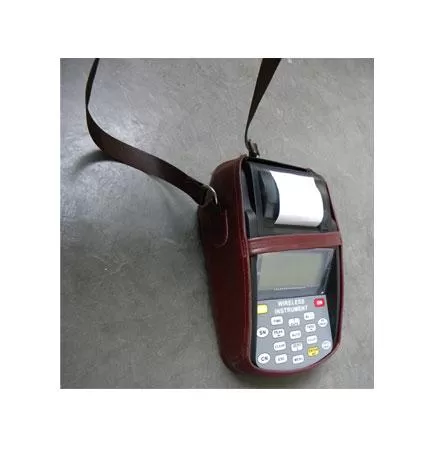

DL-W5 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,Whether used as conventional crane weigher or to measure force, DL-W5 wireless dynamometer is the latest design, compatible with the concept of portable, print and easy to operate. Shoulder bag style leather case,easy to carry, suitable for protected outdoor use., calibration is easier with 580 indicator.

Body protection: Aluminum and alloy steel capacities are powder coated.

Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.

Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)

Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.

Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.

Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).

Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.

Body indicator key: 4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.

Indicator communications: Both RS232 serial port and USB port，solve most laptops without serial port problem. with the Everight company’s PC host computer software,not only display weigh value and stable information on the PC ,can also enter company’s name,complete storage ,print query and other functions .

Antenna: Internal antenna

Function on indicator keyboard: It can print data,time,Serial number, commodity number,net weight and total weight. Also can input 16 digits head information,It can store up to 2000 weighing records.It can be statistics by serial number or commodity number，also can statistics by data, statistical results can be printed with weighing number and total weight.

Main technical data:

Body Display	25mm (1’’) 5digits LCD with backlight
Indicator Display	25mm (1’’) 5digits LCD with backlight
Power on zero range	20% F.S.
Manual Zero Range	4% F.S.
Tare Range	100% F.S.
Stable Time	≤5 seconds
Overload Indication	100% F.S. + 9e
Max. Safety Load	125% F.S.
Ultimate Load	400% F.S.
Battery Life	≥50 hours
Body Battery	“LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Indicator Battery	Rechargable Ni-H battery, SC 3.3Ah
Operating Temp.	– 20℃ ~ + 50℃
Operating Humidity	≤85% RH under 20℃
Indicator printer	FUJITSU FTP-628 MCL101#50″ high speed thermal printer
Wireless Distance	Min. 80m(default) [200m(optional)]
Wireless Frequency	2.4GHz(default),433MHz,868MHz(optional), up to 128 channels available

Why Use Our Dynamometer Testing Equipment

Dynamometer testing is a mandatory safety procedure for all heavy lifting equipment. Our dynamometer testing device records real-time tension force, captures peak load and performs proof load tests to verify lifting hardware safety before operation. Built with high-strength alloy steel housing and high-precision load cell, it is durable for harsh outdoor dynamometer testing jobs.

Common Dynamometer Testing Applications

Our dynamometer testing instrument is widely used for load inspection globally:

Crane & Rigging: Proof load dynamometer testing for mobile crane, tower crane, lifting slings and shackles.

Port & Terminal: Container lifting inspection, mooring line tension dynamometer testing.

Offshore & Marine: Marine lifting load test, salt-resistant dynamometer testing for offshore platform.

Mining & Quarry: Winch pulling force measurement and regular dynamometer testing.

Factory Material Lab: Breaking load test for wire rope, webbing sling and lifting hardware.

Share your max test load, site environment and test frequency. We configure dynamometer testing equipment for your project.

FAQ

About Dynamometer Testing & Dynamometer

Q1: What is dynamometer testing used for?

A: Dynamometer testing measures tension force and performs proof load tests on lifting equipment, to check safety and avoid overload failure during hoisting.
