Floor Pallet Scales – Industrial Warehouse Pallet Weighing Platform

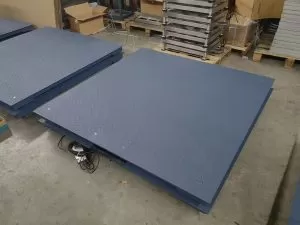

Our floor pallet scales are heavy-duty industrial weighing platforms specially built for palletized goods, widely used in warehouses, logistics centers, manufacturing plants and freight stations. Low-profile design allows pallet trucks to roll pallets onto the platform effortlessly, optional ramps available for easier loading.
Technical Specifications
1.Carbon steel, stainless steel optional
2.Plate, pattern plate optional
3.Low scale, no frame structure design, a simple structure
4.Limit one forming mechanism
5.The four angle is adjustable in height
6.Surface spray or paint handling
7.Installation, convenient use, placed directly on the hard ground can be used
8.Optional ramps
The standard for ordinary 5MM thickness plate + Shanghai Yaohua XK3190-A12 display, spray tops, signal line length 5 m.
Note : Size can be customized , Details Price kindly consult us by mail or trademanager !
| Item | Model | capacity | checker plate | width(m) | length(m) | |||
| 1 | CW9330-600*600mm-A12E | 1-3T | 4mm | 0.6 | 0.8 | |||
| 2 | CW9330-800*800mm-A12E | 1-3T | 4mm | 0.8 | 0.8 | |||
| 3 | CW9330-1*1m -A12E | 1-3T | 4mm | 1.0 | 1.0 | |||
| 4 | CW9330-1*1.2m-A12E | 1-3T | 4mm | 1.0 | 1.2 | |||
| 5 | CW9330-1.2*1.2m-A12E | 1-3T | 4mm | 1.2 | 1.2 | |||
| 6 | CW9330-1.2*1.5m-A12E | 1-3T | 4mm | 1.2 | 1.5 | |||
| 7 | CW9330-1.5*1.5m-A12E | 1-3T | 4mm | 1.5 | 1.5 | |||
| 8 | CW9330-1.5*2.0m-A12E | 1-3T | 4mm | 1.5 | 2.0 | |||
| Item | Model | capacity | checker plate | width(m) | length(m) | |||
| 1 | CW9530-1*1m-A12E | 1-3T | 5mm | 1.0 | 1.0 | |||
| 2 | CW9530-1*1.2m-A12E | 1-3T | 5mm | 1.0 | 1.2 | |||
| 3 | CW9530-1.2*1.2m-A12E | 1-3T | 5mm | 1.2 | 1.2 | |||
| 4 | CW9530-1.2*1.5m-A12E | 1-3T | 5mm | 1.2 | 1.5 | |||
| 5 | CW9530-1.5*1.5-A12E | 1-3T | 5mm | 1.5 | 1.5 | |||
| 6 | CW9530-1.5*2m-A12E | 1-10T | 5mm | 1.5 | 2.0 | |||
| 7 | CW9530-1.5*2.5m-A12E | 1-10T | 5mm | 1.5 | 2.5 | |||
| 8 | CW9530-1.5*3m-A12E | 1-10T | 5mm | 1.5 | 3.0 | |||
| 9 | CW9530-2.0*2.0m-A12E | 1-10T | 5mm | 2.0 | 2.0 | |||
| 10 | CW9530-2.0*2.5m-A12E | 1-10T | 5mm | 2.0 | 2.5 | |||
| 11 | CW9530-2.0*3.0m-A12E | 1-10T | 5mm | 2.0 | 3.0 | |||
| Item | Model | capacity | checker plate | width(m) | length(m) | |||
| 1 | CW9630-1.0*1.0m-A12E | 1-3T | 6mm | 1.0 | 1.0 | |||
| 2 | CW9630-1.0*1.2m-A12E | 1-3T | 6mm | 1.0 | 1.2 | |||
| 3 | CW9630-1.2*1.2m-A12E | 1-3T | 6mm | 1.2 | 1.2 | |||
| 4 | CW9630-1.2*1.5m-A12E | 1-3T | 6mm | 1.2 | 1.5 | |||
| 5 | CW9630-1.5*1.5m-A12E | 1-3T | 6mm | 1.5 | 1.5 | |||
| 6 | CW9630-1.5*2.0m-A12E | 1-10T | 6mm | 1.5 | 2.0 | |||
| 7 | CW9630-1.5*2.5m-A12E | 1-10T | 6mm | 1.5 | 2.5 | |||
| 8 | CW9630-1.5*3.0m-A12E | 1-10T | 6mm | 1.5 | 3.0 | |||
| 9 | CW9630-2.0*2.0m-A12E | 1-10T | 6mm | 2.0 | 2.0 | |||
| 10 | CW9630-2.0*2.5m-A12E | 1-10T | 6mm | 2.0 | 2.5 | |||
| 11 | CW9630-2.0*3.0m-A12E | 1-10T | 6mm | 2.0 | 3.0 | |||

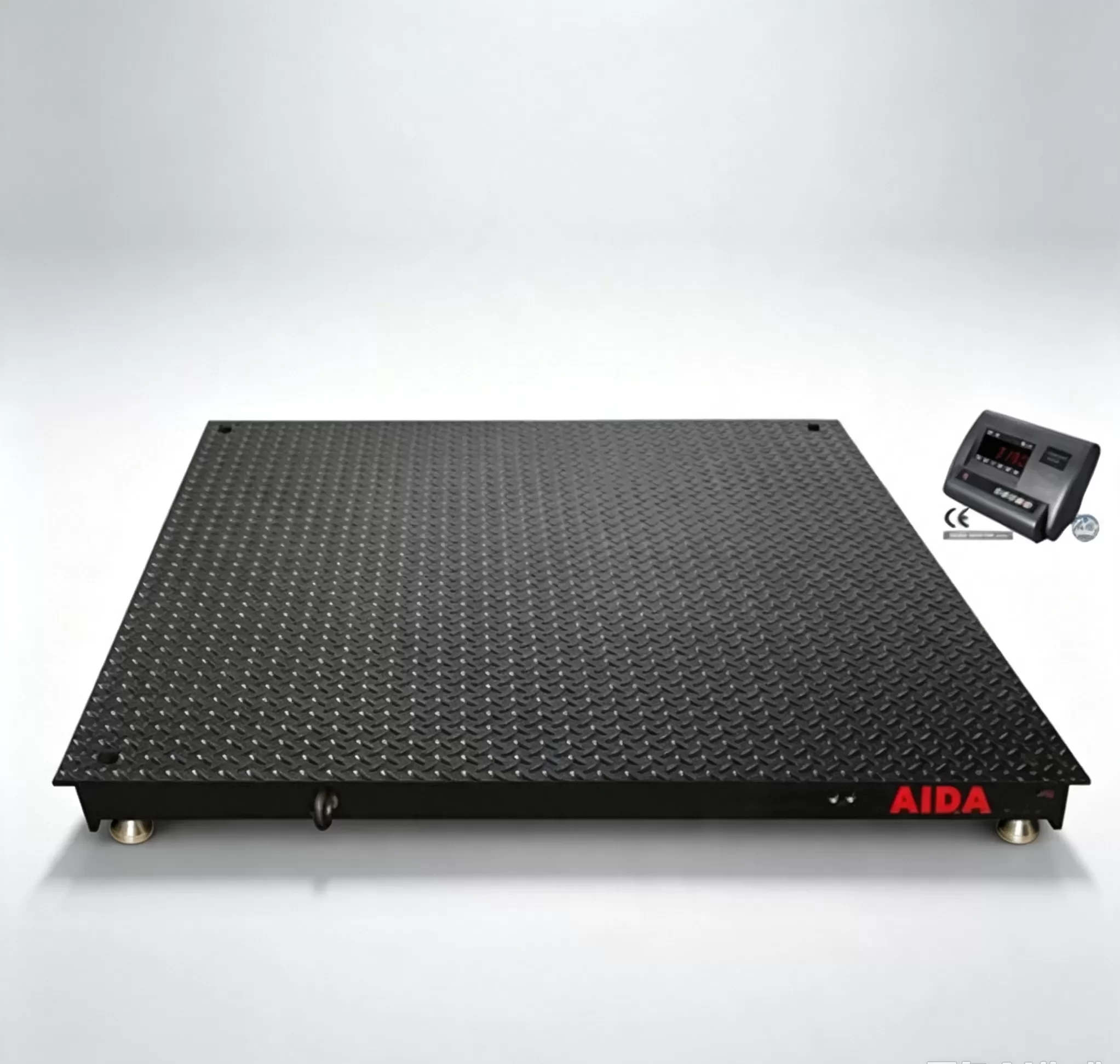

Containing scale body, A12E indicator, 4 sensors, ABS junction box, 5 m signal cable.
High-strength U-beam structure, durable
Automatic reset back to zero repeatability and good.
Optional :
stand pole
Carbon ramp: 1.0 * 0.63 m, 0.63 m 1.2 * 1.5 * 0.63 m; 2.0 * 0.63 m;
Carbon ramp: 1.0 * 0.9 m; 1.2 * 0.90 m; 1.5 * 0.9 m; 2.0 * 0.9 m;
*Explosion-proof

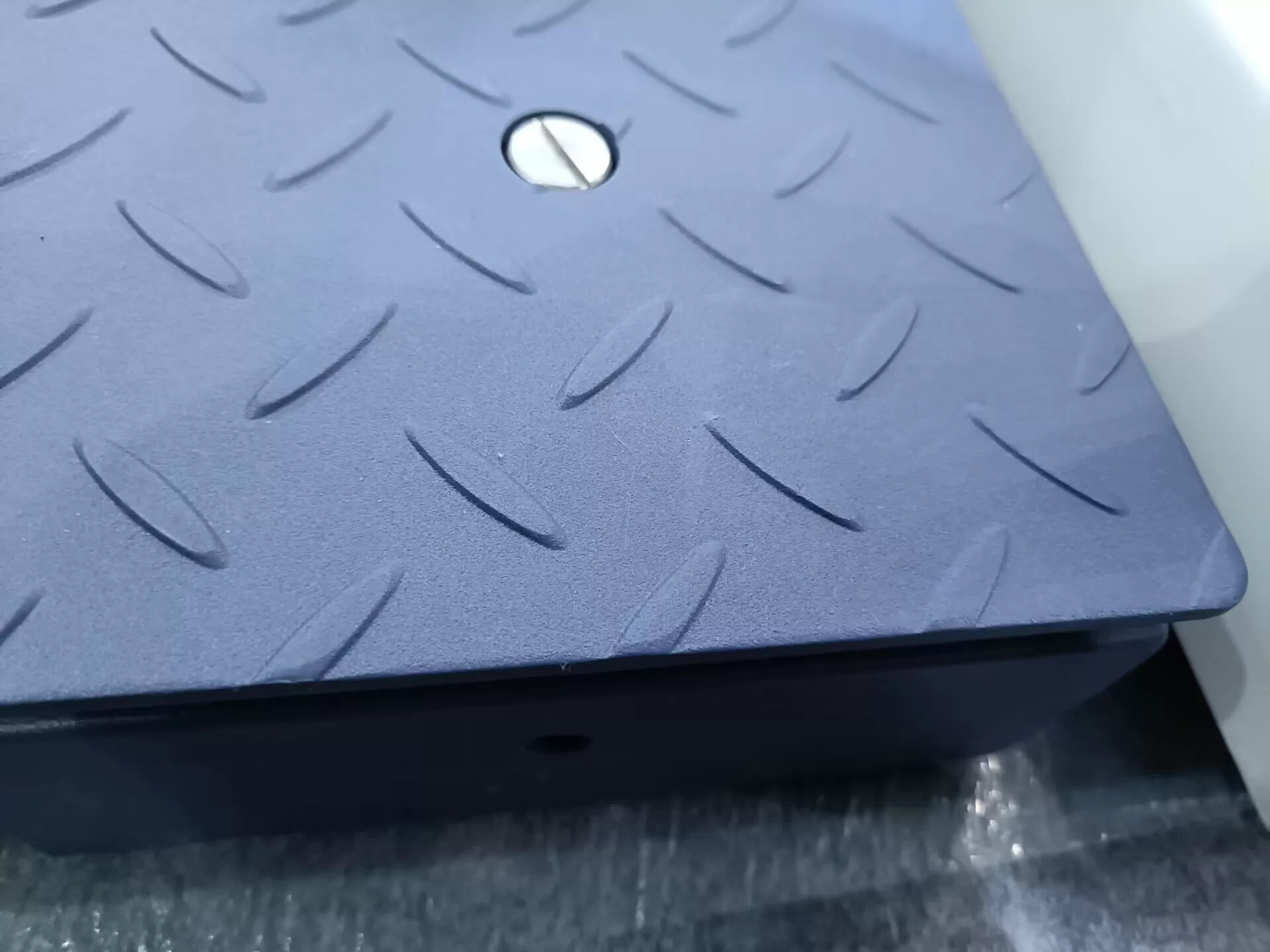

- Heavy-duty carbon steel platform, anti-slip surface, wear-resistant
- High precision load cells, stable weighing data
- Low profile construction, optional access ramps
- Digital weighing indicator with tare, zero, totalization functions
- Multiple capacity options: 1t, 2t, 3t, 5t
- Waterproof & dustproof structure for workshop and warehouse environment
- RS232 optional for connecting printer or PC weighing software
- Overload protection to safeguard load cells
Application
Floor pallet scales are ideal for weighing pallet cargo, drums, crates and bulk packages. Suitable for warehouse inventory control, incoming & outgoing goods inspection, logistics shipping weight check and factory production weight monitoring.
Custom Service
We support custom platform dimensions, weighing capacity, stainless steel version and optional ramps. Contact us for floor pallet scales quotation and technical drawing.
FAQ
Q: What are floor pallet scales? A: Floor pallet scales are heavy-duty low-profile platform scales used to weigh full pallets, boxes and drums in warehouses, factories and logistics centers.
Q: Do floor pallet scales need ramps? A: Optional ramps are available. Low-profile floor pallet scales can be fitted with ramps so pallet trucks can roll pallets on and off easily.
Q: Can floor pallet scales connect to weighing software? A: Yes, optional RS232 interface supports data transmission to PC, weighing software or thermal printer.
Q: What capacities do your floor pallet scales supply? A: Standard capacities: 1 ton, 2 ton, 3 ton, 5 ton. Custom size and capacity are acceptable.
