H1：Floor Scale with Ramp | Low‑Profile Stainless Steel Industrial Weighing Scale
H2：Product Overview

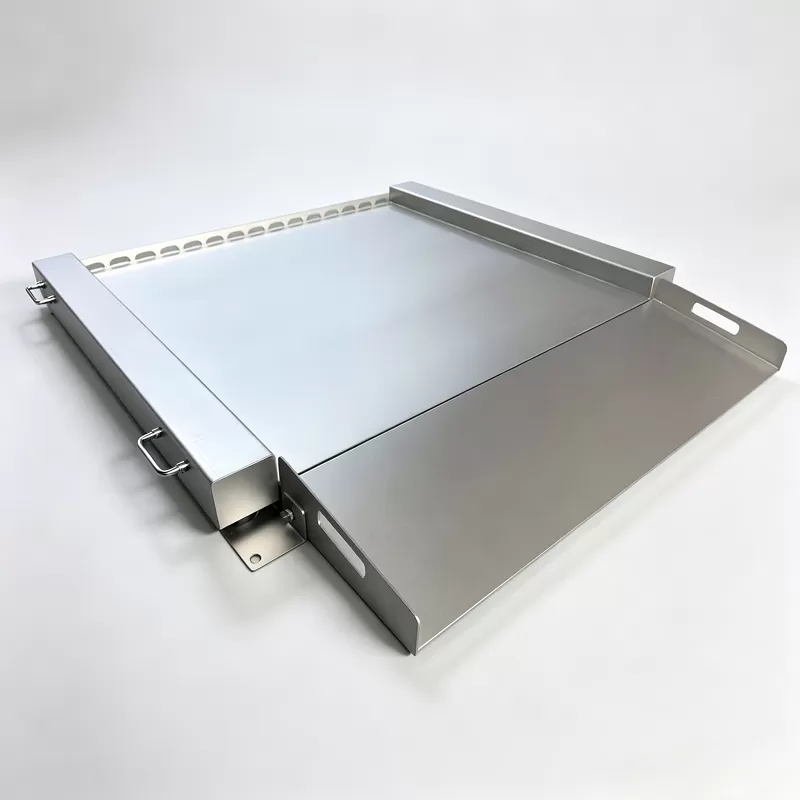

Our floor scale with ramp features full 304 stainless‑steel build and ultra‑low‑profile height. Integrated loading ramps enable pallet trucks to roll directly onto the weighing platform, eliminating the need for costly pit construction. This wash‑ready industrial floor scale with ramp performs reliably in damp, humid and mildly corrosive environments, widely used in food processing, pharmacy, chemical plants and logistics warehouses.
H2：Key Features of Floor Scale with Ramp
- Complete 304 stainless‑steel platform and ramps, rust‑proof and easy to sanitize
- Ultra‑low‑profile structure, floor scale with integrated ramps for pallet truck roll‑on
- No pit installation required, fast on‑site setup on flat concrete floor
- Available 1‑2ton weighing capacity for heavy‑duty industrial weighing
- Optional IP67 waterproof weighing indicator for wet wash‑down workshops
- Support KG / LB unit switch, tare, zero, hold and print output
- Optional RS485 and Bluetooth for data transfer to PC or system
- Custom platform size, ramp width and capacity for OEM projects
H2：Standard Size & Capacity Table
| Max Capacity | Readability | Platform Size(mm) | 304 SS Plate Thickness |
|---|---|---|---|
| 1000kg(1t) | 200g | 1000×1000 /1000×1200 | 4mm |
| 2000kg(2t) | 500g | 1200×1200 /1200×1500 | 5mm |
| 2000kg(3t) | 500g | 1200×1500 /1500×1500 | 5mm |
| 2000kg(5t) | 1kg | 1500×1500 /1500×2000 | 6mm |
Note: Custom platform dimension and special weighing capacity available upon request.
H2：Technical Specifications
| Item | Parameter |
|---|---|
| Main Material | floor scale with ramp full 304 Stainless Steel |
| Weighing Capacity | 1000kg‑2000kg |
| Loading Method | Pallet truck roll‑on via integrated ramps |
| Power Supply | AC‑DC power supply, built‑in rechargeable battery |
| Indicator | Standard / Optional IP67 waterproof indicator |
| Communication | RS485 / Bluetooth (optional) |
| Typical Application | Food plant, pharmacy, chemical factory, logistics warehouse |
H2：Application Scenarios for Floor Scale with Ramp

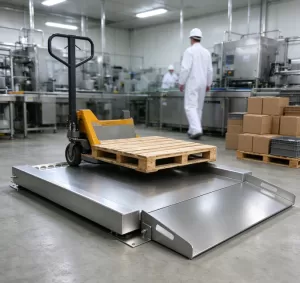

This floor scale with ramp is the perfect solution when you cannot dig pits on‑site. It excels at weighing pallet‑loaded goods inside food processing plants, seafood workshops, pharmaceutical facilities and distribution warehouses. The smooth stainless‑steel surface supports regular washing to meet sanitary production standards.
H2：Why Choose Our Floor Scale with Ramp
✅ Factory direct supply of floor scale with ramp, competitive wholesale price
✅ Full stainless‑steel build for long service life in harsh workshop conditions
✅ OEM customization for platform, ramp and functional accessories
✅ 12‑month warranty for the whole weighing system
✅ Timely technical guidance and after‑sales support
H2：FAQ‑Frequently Asked Questions
Q1：What is a floor scale with ramp used for?
A1：A floor scale with ramp is designed for pallet‑truck roll‑on weighing. Built‑in ramps allow pallets to drive onto the scale without pits, widely used in warehouse, food and chemical factories.
Q2：Do I need to dig a pit for this floor scale with ramp?
A2：No pit excavation is needed. Thanks to ultra‑low height and integrated ramps, the scale can work directly on flat solid concrete floor.
Q3：Can this stainless‑steel floor scale with ramp be cleaned with water?
A3：The platform and ramps are 304 stainless steel suitable for wash‑down. Please select IP67 waterproof indicator for wet‑area usage. Avoid high‑pressure water jet on indicator connectors.
Q4：Can I customize ramp width and platform size for my floor scale with ramp?
A4：Yes. We support OEM custom platform dimensions, ramp width and special‑capacity requirements for different site layouts.
Q5：What optional accessories fit this floor scale with ramp?
A5：You can select IP67 waterproof indicator, thermal printer, RS485 cable or Bluetooth module for data recording and transmission.
